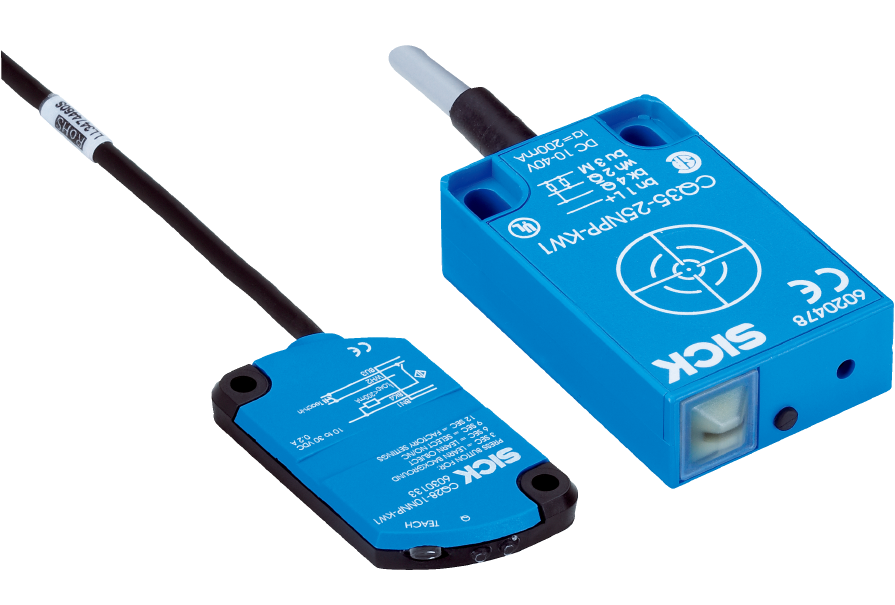

Capacitive proximity sensors CQ
Capacitive proximity sensors CQ - تصویر 2

Capacitive proximity sensors CQ

Non-contact level measurement, even through container or tank walls, which eliminates drilling holes and thus reduces installation time

Durable housing withstands harsh industrial applications, reducing maintenance costs

Quick and easy adjustment of the switching point – via pushbutton, remote teach for the CQ28 and via potentiometer for CQ35 – saves time

Simple and safe detection alternative to photoelectric and inductive sensors in applications such as detecting product in a sealed box, container or tank

Category:

توضیحات

Capacitive proximity sensors can detect all types of material: powder-based, granulated, liquid, and solid – even through plastic walls. SICK’s capacitive proximity sensors also feature high electromagnetic compatibility (EMC), which prevents incorrect switching.

CQ sensors feature rectangular housings that are suitable for all manner of installation conditions.

At a glance
  • Rectangular housing
  • Detects powders, granulates, liquids and solids
  • Extremely high electromagnetic compatibility
  • Electric version: DC, 4 cables
  • Supply voltage: 10 V … 36 V DC
  • Short-circuit protection (pulsed)

Technical data overview

Housing Rectangular
Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm

28 mm x 46 mm x 5.5 mm

35 mm x 69.5 mm x 15 mm
Sensing range Sn 6 mm … 25 mm
Housing material Plastic
Enclosure rating IP67 / IP68
Connection Cable

Male connector

Cable with male connector
Electrical wiring DC 3-wire / DC 4-wire
