Rugged design increases service life

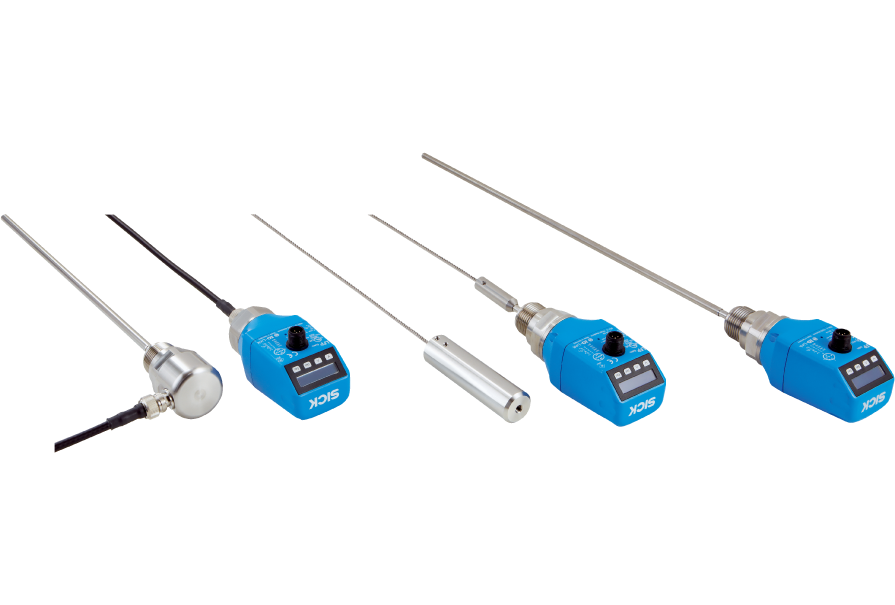

High flexibility with interchangeable rod probe or cable probe that can be cut to length
Cost savings due to multiple output signals: One system for both point level and continuous level measurement
Maintenance-free and easy to commission without calibration, saving time and money
Titanium process connection is highly resistant to chemicals
Compact, rotatable housing and remote amplifier for flexible installation
High availability, even when several sensors are installed in parallel, since there is no mutual device interference
Universal technology facilitating calibration-free measurement saves time and money
| Measurement principle | TDR sensor |
| Detection principle | Contact |
| Medium | Fluids |
| Measurement | Switch, Continuous |
| Process temperature | –20 °C … +150 °C |
| Process pressure | –1 bar … 16 bar |
| Output signal | 1 x PNP + 1 x PNP/NPN + 4 mA … 20 mA / 0 V … 10 V / 1 x PNP + 3 x PNP/NPN + 4 mA … 20 mA / 0 V … 10 V |
